Image Submission Guidelines

Bleed

Any parts of the design which are intended to print to the trimmed edge of the badge should be extended 2mm beyond the cut line to give a 'bleed' (which allows for tolerance in the production process). Any text or images should be inset approximately 2mm inside the cut line.

Colors / Color Matching

Here at Custom Genie, we are able to design badges from a variety of methods. When specifying a color, we can accept any of the following:

• Hexadecimal (e.g. #ffd900)
• RGB (e.g. 255,217,0)
• CMYK (e.g. 2,11,100,0)
• HSB (e.g. 51°,100%,100%)
• Pantone® colors*

Please note that, although we strive to reproduce designs as faithfully as possible, we cannot guarantee any color matches. We recommend ordering 1 badge as a sample to confirm colors.

* We print in CMYK, if you supply us with a Pantone® color we will try to match as closely as possible.

Fonts

We have a vast library of thousands of fonts on our system. But you might want to check with us when submitting your order if your design uses a rare or obscure font. If it is not subject to any licensing then why not attach the font with your artwork and we will add it to our collection.

If you supply us with a particular font and point size we can replicate this. However, make sure that when you design your own badge it is created actual size (within our cut line templates); otherwise point sizes will be meaningless

Submitting Files

We can accept logos and badge designs in almost any format, but if the badge has been designed using a vector based program it is always best to prevent rasterising the design. As such, our preferred file formats are listed below:

• .eps
• .ai
• .pdf
• .jpg
• .jpeg
• .gif
• .png
• .bmp
• .tif

As previously mentioned, we can open almost anything. In the unlikely event that you send us a file we cannot open, we will contact you about your options.

We can currently accept files via email up to around 6MB.

Stickers Technical Information

Stickers Custom Sizes

Stickers’ customized size by Width range x Height range:

• 0.5-9.12” x 0.5-9.12” for Domed, Metallic, Glossy, Matte, Glow-in-the-Dark, Fluorescent, Reflective, Removable
• 0.5-31.5“ x 0.5-51.18” for Clear
• 0.5-46.06” x 0.5-66.93” for Window
• 5.0-19.68” x 5-30” for Vinyl Lettering
• 0.5-8.64” x 0.5-8.81” for Die Cut
• 0.5-10” x 0.5-10” for Kiss Cut
• 1.0-7.48” x 1.0-7.48” for Clear Labels and Paper Labels
• 1.0-5.12” x 1.0-4.9” for Kraft Paper Label

Pens Technical Information

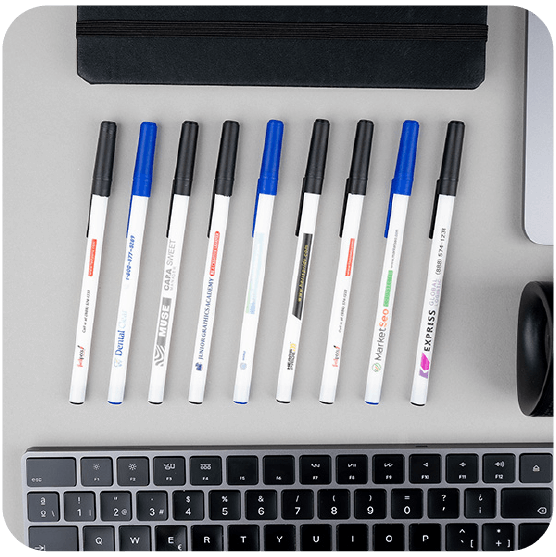

Pen Sizes

• Value Pen Stick: 15 cm length x 1 cm diameter (±2 mm)
• Contour Color Barrel: 14.5 cm length x 1.8 cm diameter (±2 mm)
• Contour Silver Barrel: 14.5 cm length x 1.8 cm diameter (±2 mm)
• Contour White Barrel: 14.5 cm length x 1.8 cm diameter (±2 mm)
• Sparta: 14.5 cm length x 1.8 cm diameter (±2 mm)
• Derby: 14.5 cm length x 2 cm diameter (±2 mm)
• Executive Silver: 14 cm length x 1 cm diameter (±2 mm)
• Electra Metal Classic: 14 cm length x 1 cm diameter (±2 mm)
• Electra Metal Engraved: 14 cm length x 1 cm diameter (±2 mm)
• Bamboo Printed: 14 cm length x 1.7 cm diameter (±1 mm)
• Bamboo Engraved: 14 cm length x 1.7 cm diameter (±1 mm)
• Pencil: 19 cm length x 7.2 mm diameter (±5 mm)

Pens Customizable Areas

Pens customizable area is as follows:

• Electra Soft Touch Ballpoint: 50mm × 6.5mm
• Derby Ballpoint: 60mm × 6mm
• Sparta Ballpoint: 40mm × 6mm
• Contour Ballpoint Barrel/Barrel Silver: 60mm × 6mm
• Antibacterial Pen: 50mm × 6mm
• Bamboo Pen: 60mm × 6mm
• Value Stick: 90mm × 5mm
• Metal Saver: 50mm × 6.5mm

Name Badge Technical Information

Badge Technical Information

There are two choices when designing a new badge. You can either:

1) Design your own badge online with a few simple steps to create a customized and personalized name tag. You don't need to be a graphic designer to design your badge on-line with our design tool. Watch our videos to see how easy it is.

-OR-

2) If you are a graphic designer and would like to design something more complex than can be achieved with our online design function, we have provided the following information and guidelines to help you get the most out of your design.

PLEASE NOTE: Where possible, please create just one badge and supply us with a list of names and/or titles (Excel preferred). We do not accept multi-page PDF files without an accompanying list of names. If you have to design all of the badges, please supply one document (preferably PDF) containing all of the designs on one page (page size doesn't matter) using the cutlines from the Badge Templates below.

Creating Art for Your Badge

The first step to creating your own badge is to:

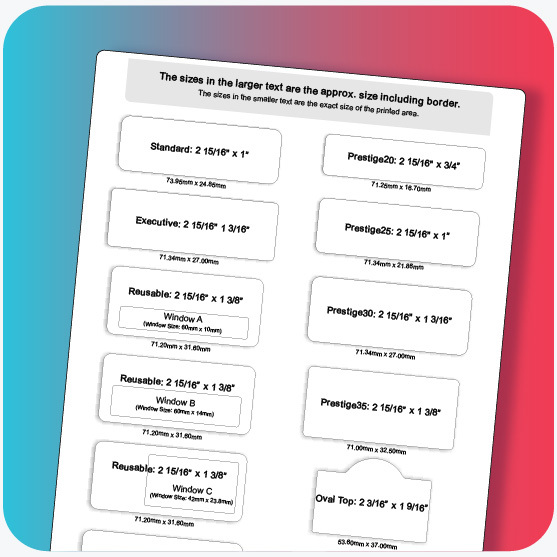

Download Our Badge Template

This template contains badge sizes and the printable area for each of our badges.

TIP: We suggest creating your name badge design with the longest name/title for centering purposes.

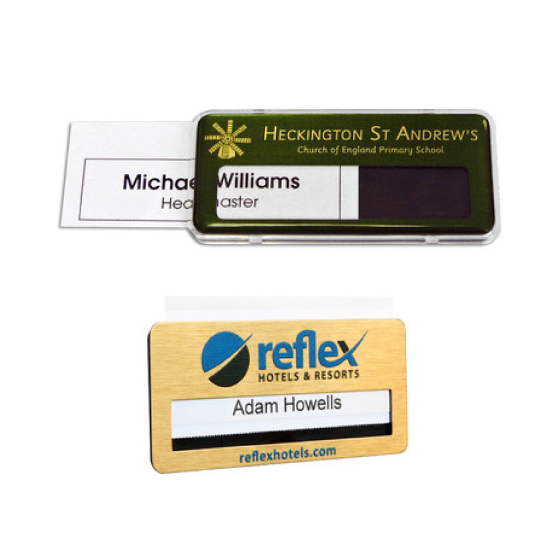

Reusable Badges

Custom Genie offers Reusable badges that can be personalized with a name and title in-house using our perforated paper, downloadable templates and your own printer. There are several templates to use depending on how the badge was designed, but each can be easily downloaded for users to type in the names and titles.

• Plastic-Reusable Perforated Sheet - Window A-1Line
• Plastic-Reusable Perforated Sheet - Window B-1Line
• Plastic-Reusable Perforated Sheet - Window B-2Line
• Plastic-Reusable Perforated Sheet - Window C-1Line
• Plastic-Reusable Perforated Sheet - Window C-2Line
• Plastic-Reusable Perforated Sheet - Window C-3Line
• Plastic-Reusable Perforated Sheet - Window C-4Line

• Metal-Reusable Perforated Sheet - Window A_High-1Line
• Metal-Reusable Perforated Sheet - Window A_Short-1Line
• Metal-Reusable Perforated Sheet - Window B_High-1Line
• Metal-Reusable Perforated Sheet - Window B_High-2Line
• Metal-Reusable Perforated Sheet - Window B_Short-2Line
